Fully Automatic Open Cup Flash Point Tester TPO-3000
You are here: Home » Products » Petroleum Products General Testers » Fully Automatic Open Cup Flash Point Tester TPO-3000 » Fully Automatic Open Cup Flash Point Tester TPO-3000
Share to:

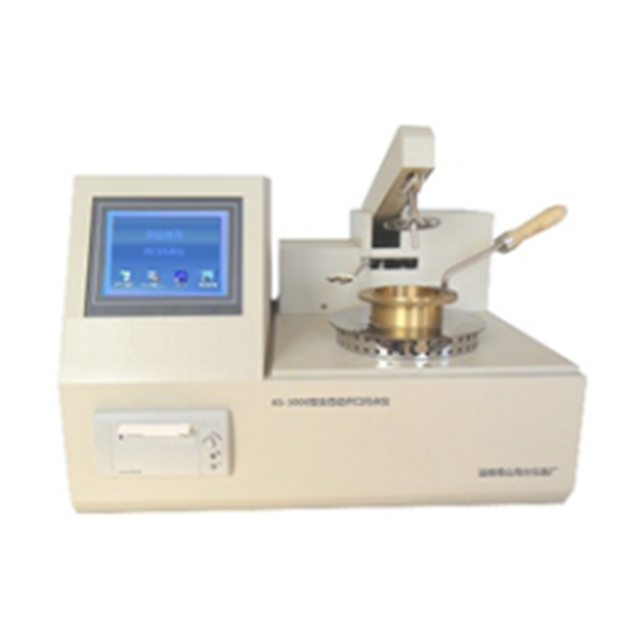

Fully Automatic Open Cup Flash Point Tester TPO-3000

Quantity:
  • TPO-3000
  • TOP OIL PURIFIER
No need of gas source; electronic ignition; imported sensor; automatic correction of air pressure; alerting if over value

Application:
The automatic flash point analyzer(open-cup) is designed in accordance with ASTM D92, IS02592,GB267,GB3536 etc. It adopts microcomputer technology that makes realization of completely automatic. It equips with color touch screen operations system and auto-high speed thermal printer.Most important,it has the function of self-checking.It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.
Main Features:
1.7-inch color touch screen and man-machine conversation LCD display in English.
2.Adopts high speed signal processor: precision simulation/digital converter circuit.
3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.
4.Data storage function: store 300 groups testing data. It is timely to check historical records
5.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
6.Stirring,ignition,testing,alerting,cooling,printing are fully automatic.
7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards
8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
9.Security airless source of platinum alloy to ignite:stable,reliable and high precision

flash point tester, flash point testing equipment, automatic flash point tester, oil flash point tester, flash point analyzer, open cup flash point tester, flash point tester, flash point lubricating oil, flash point instrument, flash point meter, flash point tester for oil, testing machine, flash point analyzing, coc flash point tester, flash point measuring equipment, oil flash point test, lubricating oil flash point, closed cup flash point tester, laboratory equipment, flash point test equipment, flash point & fire point apparatus, flash point apparatus, flash point analyzing, lube oil flash point, engine oil flash point, automatic closed cup flash point tester, flash point measuring instrument, flash point and fire point tester, automatic flash point tester device,oil flash point ignition,oil open cup flash point meters, pensky-martens closed cup flash point tester

Display 7-inch color touch LCD display screen
Test method: Thermocouple differential detection
Test range: Room temperature-400℃
Repeatability: ±2℃
Printer: High speed thermal printerpaper size:44mm
Ignition mode: Automatically electronic ignition
temperature Detection Imported precision platinum resistance
Self-checking : Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke ect.
Power consumption: 700w
Temperature: Atmospheric temperature: 10℃-45℃humidity: 30-80%
Power: AC220V±10%
Dimension 400×300×240mm
Weight: 20 kg
