TPZC
TOP OIL PURIFIER

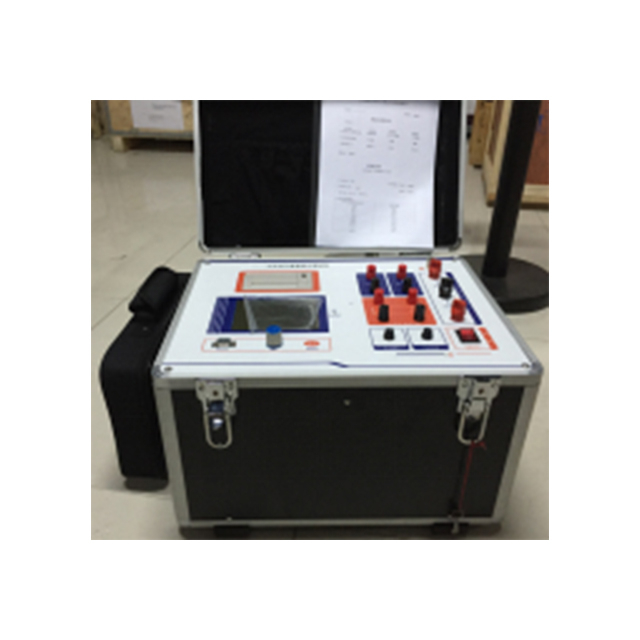

TPZC Series winding resistance tester are applied to measure the DC resistance of inductance circuit such as power transformer coil, current transformer coil and so on.<o:p>
Also the tester could be applied to measure the cable resistance in 4-wire mode.<o:p>
Functions:
1 Winding resistance measurement
2 Discharge the energy automatically when test is ended
3 Print the test results by micro printer<o:p>
Technical parameters:
1 Test current<o:p>
TPZC-2 max test current 2A
TPZC-10 max test current 10A
TPZC-20 max test current 20A
TPZC-40 max test current 40A
TPZC-100 max test current 100A
TPZC-20S max test current 20A Three channels measurement at the same time<o:p>
2 Maximum measurement error: 0.2%RDG+2D
3 LCD display
4 Maximum voltage out for all series: 20V
5 Resolution: 1μΩ (for all series)
6 Measuring range:
1μΩ~4.5kohm( TPZC-2)
1μΩ~20ohm( TPZC-10)
1μΩ~10ohm( TPZC-20)
1μΩ~10ohm( TPZC-40)
7 Rated power supply: AC220V±10%% 50Hz/60Hz
8 Temperature : -10℃~+40℃ RH≤85%<o:p>
