Application:
▇ Light alloy and its processing
▇ Structural strength of metal components
▇ Rolled steel sheet
▇ Ceramic materials and their processing
▇ Silicon material and its processing
▇ Archaeology and cultural relics identification
▇ Power plant
▇ And, determined by crystallographic diffraction analysis of the internal material, without destroying the sample or the workpiece.

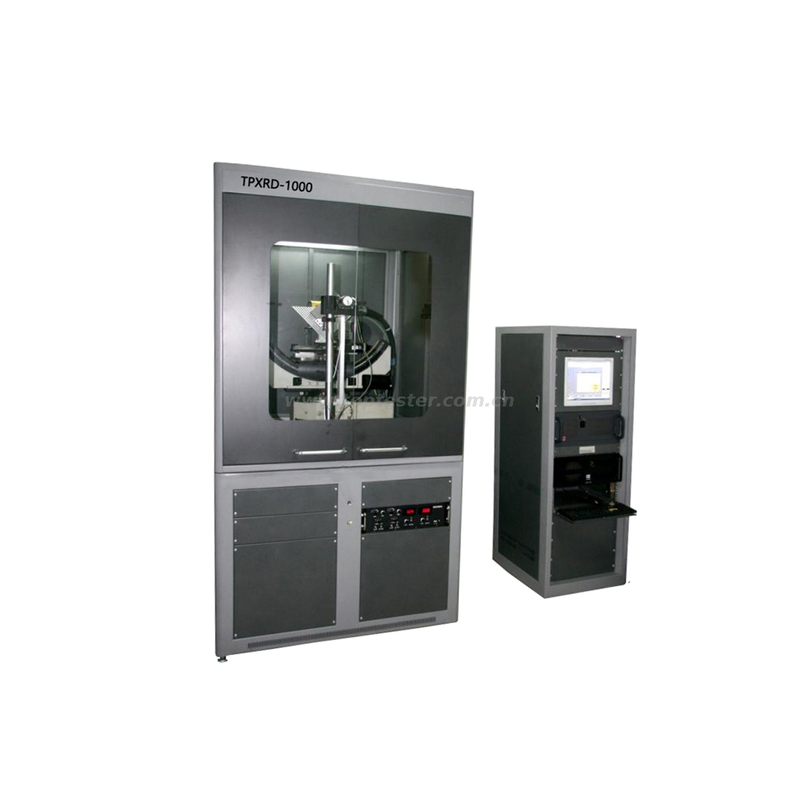

Diffractometer
Material workpiece can measure maximum thickness：
70mm magnesium
40mm Aluminum
30mm silicon
8mm titanium
4mm iron
3.5mm nickel
3mm copper
Sample table workpiece maximum load bearing：20kg
Minimum diffraction volume：0.1mm ×0.4mm×1.0mm
The test error of Al(111) crystal plane spacing of aluminum powder standard is less than ±0.0006Å
Stress test error is less than ±25MPa
Remarks: The sample stage with a maximum load of 100kg can be designed according to user requirement
