Application

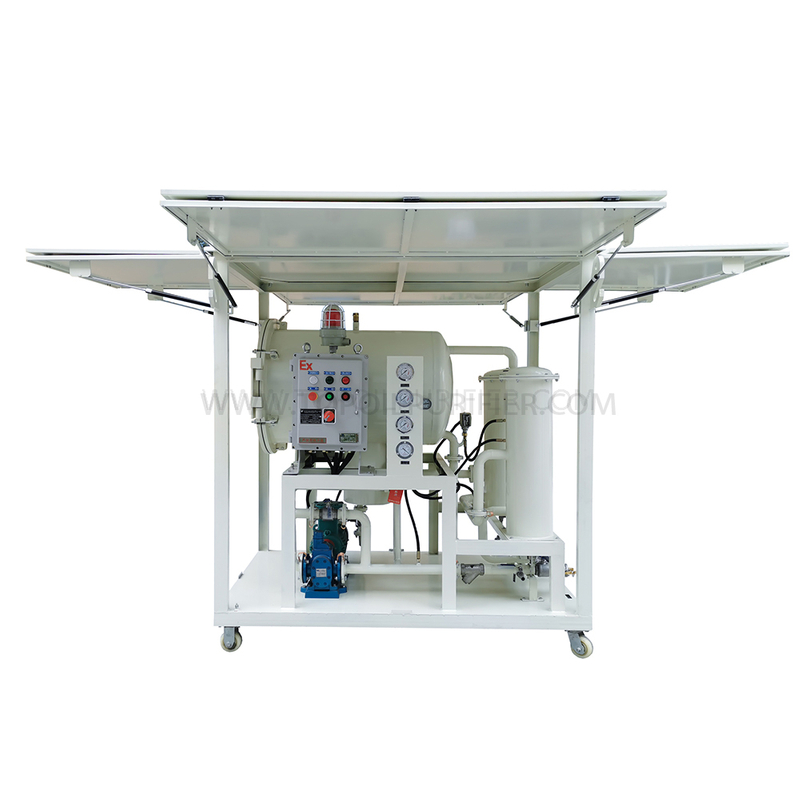

TYB-A series is fully automatic operating type. It adopts PLC automatic control to achieve the automation of whole treatment process. It integrate Coalescer and Separator Filter elements, high efficiency demulsification and dehydration into one body. Besides removing all particles from the oil, this series can remove large water content without heating. It owns fastest dehydration speed in domestic and can quickly separate water from the oil to attain cleanness of NAS six grades, with convenient using with the go-cart model design. This machine is especially designed for purifying fuel oil including diesel and gasoline as well as light lubricating oil and turbine oil.
To meet customers’ special needs, we develops:
TYB Coalescence-Separation Oil Purifier
TYB-W Fully Enclosed Oil Purifier
TYB-A Fully Automatic Oil Filtration Machine
TYB-Ex Explosion-Proof Fuel Oil Purification Machine
Features
1. TYB-A Series is fully automatic operated machine.
2. TYB-A series purifiers adopt special oil water separator which requires no heating creating more than 20 times dewatering efficiency compared with other types of purifiers.
3. For no need of heating, additives in the oil are well prevented from degradation or deterioration.
4. Easy operation. Water can be discharged online automatically without the presence of duty operators.
5. Low operation cost. 20%-40% lower than vacuum purifiers, centrifugal purifiers and filter presses.
Optional Features:
1. Flow Meter
2. Continuous Online Moisture in Oil Meter Model PTT-001)
3. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)
4. Metallic Weather Proof Enclosure to prevent rain, sun, dust ect.,
5. Single/Double-axles Road worthy Trailer for Outdoor Use
Technical Parameter:
Item | Unit | TYB-A-10 | TYB-A-20 | TYB-A-30 | TYB-A-50 | TYB-A-100 | TYB-A-200 | TYB-A-300 |
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 200 | 300 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 12000 | 18000 |
Working pressure | Mpa | ≤0.4 |
Power supply | / | 380V/50HZ/3Ph 5 wire(as customer’s requirement) |
Working noise | dB(A) | ≤65～80 |
Continuous working time | h | ≥150 |
Total electric power | kW | 1.1 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5 |
Weight | kg | 200 | 250 | 300 | 350 | 400 | 500 | 800 |
Index after filtration | Moisture | ppm | ≤100 |
|
Filtering accuracy | μm | ≤5 |
|
