Description:

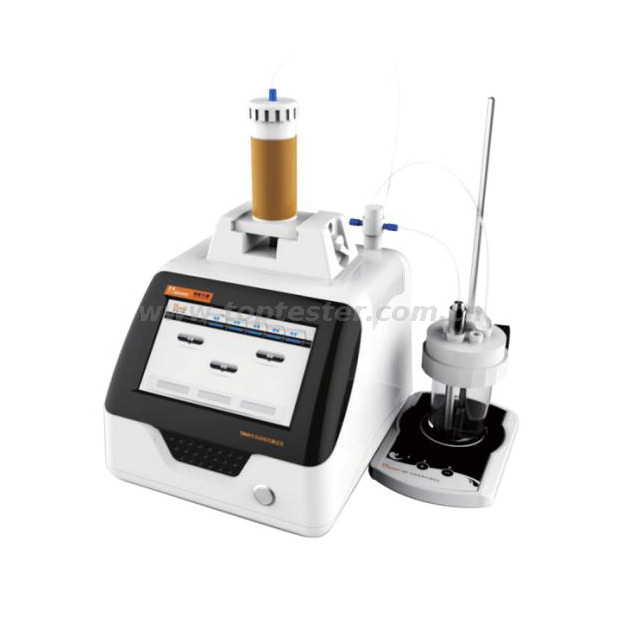

TP6696 automatic titrator is a lab titration device with high analysis accuracy under the principle of potentiometric titration. It has modular design and consists of three parts: volume titration device, control device and measuring device. The titration methods include macro titration, micro titration, volume setting titration, EP, etc. It conforms to ASTM D664 Test Method for Acid Number of Petroleum Products by Potentiometric Titration and ASTM D2896 Test Method for Base Number of Petroleum Products by Potentiometric Perchloric Acid.
Feature:
Zero-dead volume solenoid valve, changing easily for PTFE burette. Ultrathin stirring device, adopt coil realize magnetic Stir.
Accuracy closed-loop control for volume.
High-accuracy burette accurate to 0.005mm.
Simple design, discrete stirring unit, detachable easily.
Wide operating voltage range 110~240V, apply to global client.
LCD touch screen.
Technical data:
Resolution | 0.01pH; 0.1mV; 0.1°C |
pH measuring range | 0.00pH-14.00pH |
mV measuring range | 0-±2000mV |
Temperature measuring range | (-5.0~105.0)°C |
Repeatability | 0.20% |
Sensitivity of controlling titration | ≤2mV |
Power supply110-240V 50-60Hz | 110-240V 50-60Hz |
Burettvolume tolerance | Burette 15mL ±0.025mL |
Burette 25mL ±0.035mL |
titration mode | HCl--NaOH;K2Cr2O7--Fe2+ |
