Product Description:

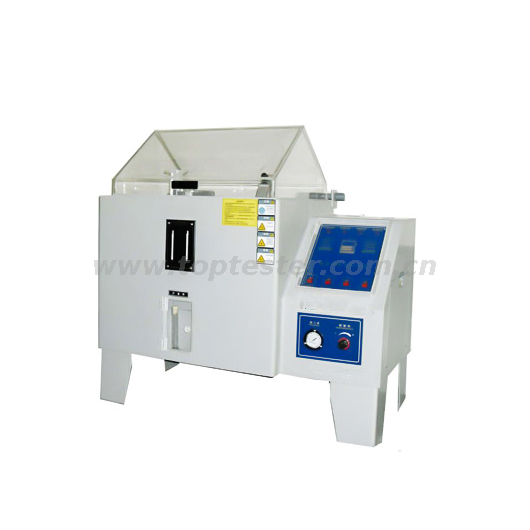

Model: TP-0081
TP-0081 is designed and manufactured based on SH / T 0081, using salt and spray test box to assess of the resistance of anti-corrosive oil to metals, applicable to anti-corrosive oil.
Features
Pressure tank made of stainless steel, seamless welding, titanium tube heating , longer service life, high degree of corrosion resistance, the cover made of imported transparent acrylic sheet , high transparency for observation.
Digital temperature controller, PID temperature control, corrosion resistance temperature probe. When the salt spray test, temperature accuracy is ± 1 °C.
3. Using high-precision multi-function timer, testing time can be set, and with a power failure memory function.
4. Automatic / manual addition water system ,which made the test couldn’t be interrupted when the water level is low.
5. Double over-temperature protection, in the event of heating failure or temperature controller system failure which can automatically cut off the heating power.
6. Double low water protection can prevent laboratory and pressure tank burning for heating without water.
7. Precision quartz glass nozzle won’t crystallize within 4000 hours, conical diffuser in spray tower can guide fog, adjust the volume of fog, uniform fog .
Technical Parameters
Temperature range: salt spray chamber temperature: 35 °C ~ 50 °C (can be set)
saturation temperature: 47 °C ~ 63 °C (can be set)
Temperature accuracy: ± 1 °C
Inner box size: 600x450x400mm
Carton size: 1070x600x1180mm
Chamber capacity: 108L
Saltwater tank capacity: 15L
Spray settlement: 1.0 ~ 2.0ml / h • 80cm2
Power voltage: AC 220V ± 10% 50Hz ± 10%
Standard configuration
No. | Name | Type | unit | Quantity | Remark |
1 | Anti-rust oil, salt and spray corrosion host tester | TP-0081 | set | 1 |
|
2 | Spray power |
| Set | 1 |
|
3 | shelves |
| Stick | 4 |
|
4 | Glove stick |
| Stick | 6 |
|
5 | Standard cylinder |
| Stick | 1 |
|
6 | Temperature indicator |
| Stick | 2 |
|
7 | Collector |
| Stick | 1 |
|
8 | Glass nozzle |
| Stick | 1 |
|
9 | Defogging |
| Group | 1 |
|
10 | Cup |
|
| 1 |
|
11 | Instructions | TP-0081 | part | 1 |
|
12 | Certificate | TP-0081 | part | 1 |
|
13 | Warranty card | TP-0081 | part | 1 |
|
