Application

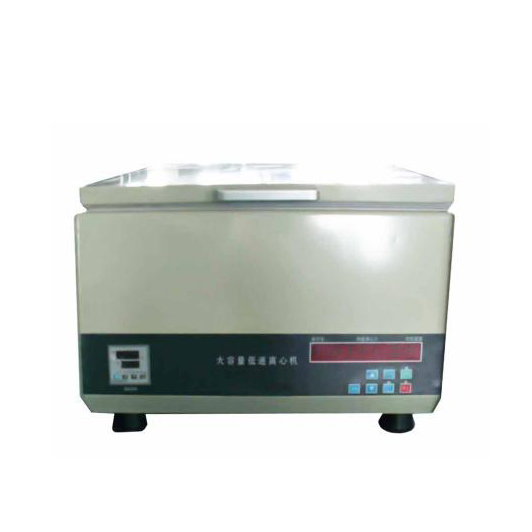

TP-171 is applied to test the water and sediment in crude oil by centrifuge method as per GB/T 6533.
Method
Add crude oil and toluene solution saturated by water of same volume into cone-shape centrifuge tube. After centrifuge, read out the volume of the water and sediment in the bottom of tube.
Feature
Adopt SCM control system for temperature control and speed control, all English operating interface, easy to operate.
Aopts frequency control technology and digital real-time display of temperature, rotation speed, centrifugal force etc.
Instrument configuration Programmable procedures, you can arbitrarily set the centrifugal time and RCF.
Rotor capacity, imported environmental protection centrifuge. The variable frequency motor has many safety protection of unbalance, over-temperature, over-speed, door cover etc.
Technical specification
1. Operation power: AC 220V50HZ
2. Machine power: 2000W
3. Rotation speed: 0--4000 r / min
4. Centrifuge tube capacity: 500ml * 4, 10ml * 48
5. Centrifuge tube material: aluminum, aperture Φ40*190mm
6. Relative centrifugal force: 4690xg
7. Temperature control range: room temperature --- 80 °C
8. Temperature control accuracy: ± 1 °C
9. Heating power: 800W
10. Dimensions: 600 * 650 * 500mm
11. Machine weight: 55kg
