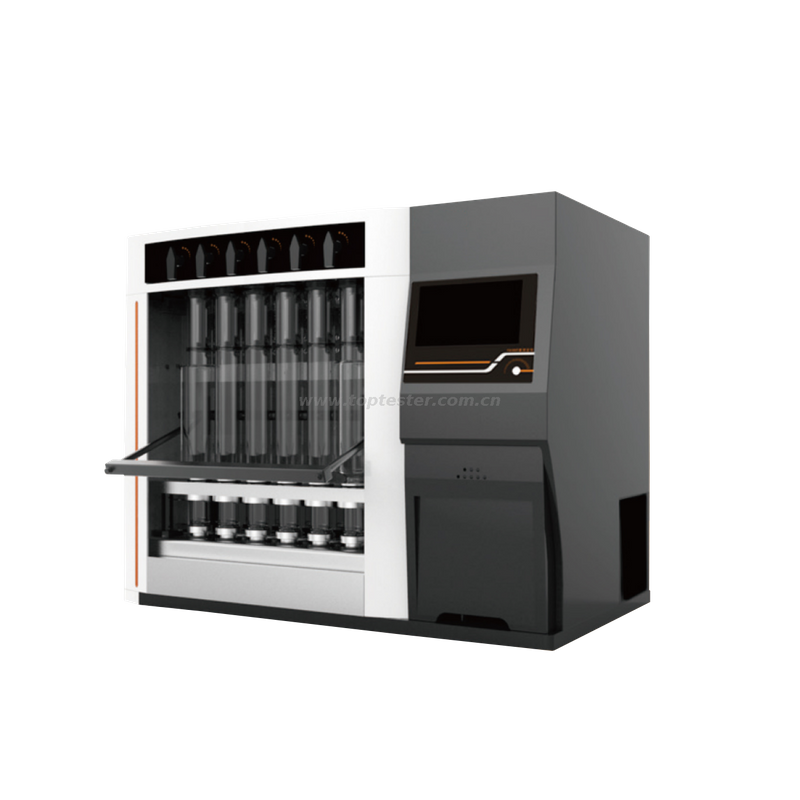

Fiber Analyzer TP-900

TOP TP800 Fiber Analyzer is with advanced design, easy operation and flexible application. It can be used in conventional Weende method toanalyze crude fiber and Van Soest analysis to wash the fiber. Applies to plant, feed, food and other agricultural products as well as the determination crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).

Features and Advantages

・ Hidden solution barrel pull structure designed to facilitate dosing operation, provide the safest fiber analysis.

・ Corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.

・ The crucible recoil function designed to prevent sample in the crucible cannot caking filtration.

・ With dosing overflow protection function, to prevent dosing corrosive liquidoverflow due to operator error, protect the safety of the operator.

・ Adjust the crucible heating power in time, enabling customers to control the heating rate easily and low down the energy consumption, ECOfriendly.

・ Having a builtin preheating function, greatly reducing the whole experiment time.

・ Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.

・ Can detect crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).

Precise control experiment

Test time can be set free, clockwise and countdown timing functions are available, realtime reminder end of the experiment, the experimenter to facilitate precise control experiment, save test time, improve efficiency.

Integrated infrared heating technology

Advanced integrated infrared heating, more uniform heating of the crucible fast, more consistent sample extraction, higher extraction recovery, thereby improving the accuracy of test results.

Optional peripheral accessories: cool extractor. Experiments can go fat, washed with acetone extraction after detection of acid lignin and other steps.

Technical data
