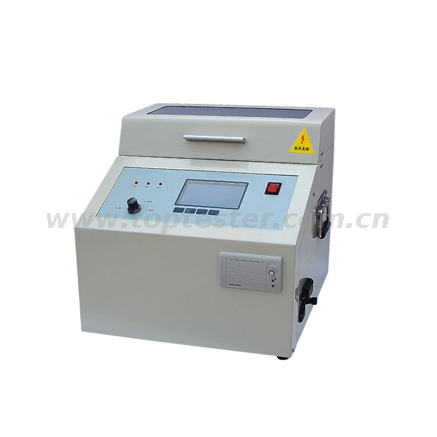

Features:
1. The instrument is of single cup portable design;
2.5.4 inches LCD screen, English menu easy to man-machine dialogue, with functions of temperature and humidity measurements, and clock display;
3. Simple operation, auto-complete boost, maintain, stir and let stand, computing, data storage and printout and other operations;
4. It can store data when the power is cut, automatically save the test results;
5. Over voltage, over current, limit and grounding alarm functions to protect the safety of operating personnel;
6. Unique waveform tuning function, eliminate harmonic waves’ interference for accurate determination;
7. Use PLC and CPU dual control, guarantee instrument work stable and reliable:
8. The instrument controlled by large-capacity single-chip, stable and reliable;
9. Instruments offers a wide range of watchdog circuit, eliminate the phenomenon of death;
Technical parameters:
Output voltage | 0~80kV(can be set) |
Voltage distortion rate | ≤2% |
Boost rate | 2.0kV/S, 2.5kV/S, 3.0kV/S, 3.5kV/S (four gears optional) |
Boost capacity | 1.5kVA |
Accuracy | ±(2%+2words) |
Power voltage | AC220V±10% |
Power frequency | 50Hz±2% |
Power consumption | ≤200W |
Temperature | 0°C~45°C |
Humidity | ≤85%RH |
Dimension | (w)410mm(h)390mm(vertical depth)375mm |
Net weight | ~29kg |
