Description

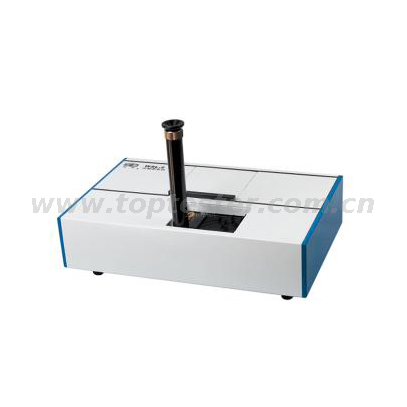

TP-226 Comparative Colorimeter (Lovibond Colorimeter) is a visual color measuring instrument. It uses the internationally recognized special color scale-Lovibond color scale to measure various liquid, colloid, solid and powder samples Chroma. This instrument has the characteristics of simple structure and convenient operation. It is often used for color measurement of different substances such as grease, paint, plastic, jam, textile, and grain.
Lovibond color scale is a special kind of chromaticity unit. It is a very simple and perfect digital color language. Therefore, it can measure various colors simply and intuitively, which is very easy to grasp. Lovibond color measuring instrument has been accepted by many countries in the world, and its application is becoming more and more extensive.
Technical Parameters
Model | TP-226 |
Measuring range | Red R 0.1 一R79.9 Lovibond |
Yellow Y 0.l 一Y79.9 Lovibond |
Blue B 0.l 一B49.9 Lovibond |
Neutral gray N 0.l 一N3.9 Lovibond |
Minimum indication | 0.1 Lovibond |
White board diffuse reflectance | > 80% |
Magnification | 1.9* |
Cuvette size | 10mm*20mm*40mm |
25.4mm*20mm*40mm |
133.4mm*20mm*40mm |
Power supply | 220V±22V ,50Hz±1Hz, 50W |
Instrument size | Host 500mm*320mm*130mm |
Observation tube φ30mm*215mm |
Net weight | 3.5kg |
