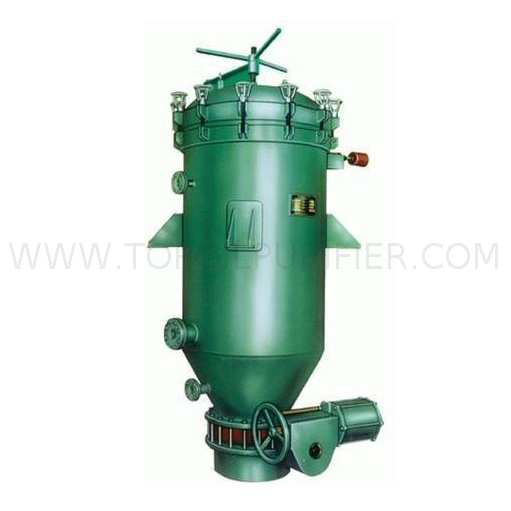

Features of structure
Its filtering cost is greatly reduced by the filter mesh plate of unique design and no need of filter paper or filter. And its fully enclosed filtration help avoid pollution and oil loss. The vibrating slags falling greatly lowers work intensity thus achieve continuous operation. Also the auto valve slagging reduces the workers’ labor intensity a lot.
Principles of filtration and scope of application
1. metal mesh + filter aid + pressure
2. metal mesh is composed of a multilayer mat type meshes and frames.
3. during pressing, bleaching agent forms a filter conductive layer on the halftone to achieve normal filtration.
4. suitable for bleaching filtration and crude oil filtration of salad oil, cooking oil and other kinds of oil.
Technical parameter:
Model | Capacity (ton/hr) | Dimension(LxWxH,mm) |
VFD-10 | 1.5 to 3 | 1100x1085x2300 |
VFD-12 | 1.5 to 4 | 1580x1100x2500 |
VFD-15 | 2 to 5 | 1680x1185x2500 |
VFD-20 | 3.5 to 6 | 1680x1185x2800 |
VFD-25 | 4 to 7 | 1780x1285x2800 |
VFD-30 | 4.5 to 8 | 1880x1385x2800 |
VFD-36 | 5 to 9 | 1880x1385x3070 |
VFD-45 | 6.5 to 11 | 1980x1485x3200 |
VFD-52 | 7.5 to 13 | 2080x1585x3300 |
VFD-60 | 8.5 to 15 | 2180x1685x3420 |
VFD-70 | 9.5 to 16 | 2380x1685x3420 |
VFD-80 | 10.5 to 18 | 2380x1785x3530 |
VFD-90 | 11.5 to 21 | 2380x1885x3730 |
