Application

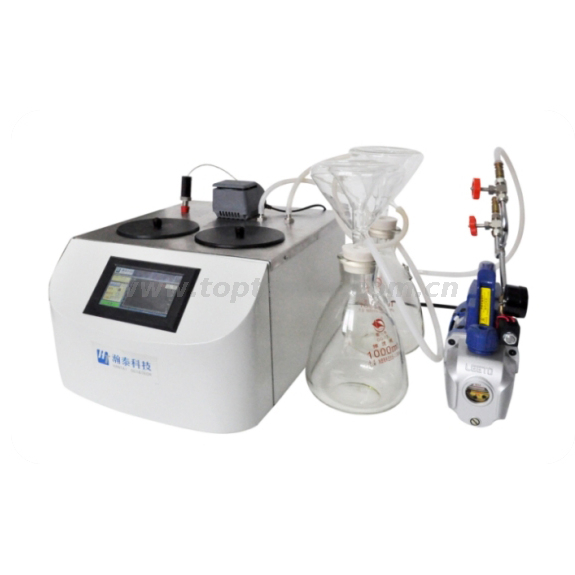

The petroleum product mechanical impurity analyzer conforms to the GB/T 511 standard and is suitable for determining the content of mechanical impurities of various light and heavy oils, lubricating oils and additives in petroleum products. It is widely used in electric power, petroleum, chemical industry, commodity inspection and scientific research. And other departments.
Control mode:
embedded system temperature control, large screen LCD display.
● Process: The experimental process uses a unique powerful heat-resistant circulating pump to circulate the temperature-controlled liquid to the transparent glass funnel interlayer to ensure that the pattern does not condense.
● Filtration: The filtration process is safe and intuitive.
● Filtration process: equipped with a vacuum pumping system to ensure that the two channels (can be used as two oil samples at the same time) can be adjusted separately.
Technical parameters
1. Temperature control range: adjustable from room temperature to 95 °C
2. Temperature control accuracy: ± 0.1 ° C
3. Heating power: 1.2KW
4. Display: large LCD display
5. Power: AC220V±10% 50Hz
6. Ambient temperature: 5 ° C ~ 40 ° C
7. Relative humidity: ≤ 85%
8. Dimensions: 300 mm * 400 mm * 420 mm
Standard configuration
Order | Name | Specification | Qty |
1 | Petroleum product mechanical impurity analyzer | PC-511A | 1 |
2 | Double insulated funnel |
| 2 |
3 | Filter bottle | 1000ml | 2 |
4 | Vacuum pump |
| 1 |
5 | Dual control valve |
| 1 |
6 | Netted tube |
| 3 |
7 | thermometer | 0-100°C | 1 |
8 | Silicone plug |
| 1 |
9 | Bath cover |
| 2 |
10 | power cable |
| 1 |
11 | fuse |
| 2 |
12 | Instruction manual |
| 1 |
13 | Certificate |
| 1 |
14 | Instrument dust cover |
| 1 |
15 | Embedded printer |
| 1 |
