Application:

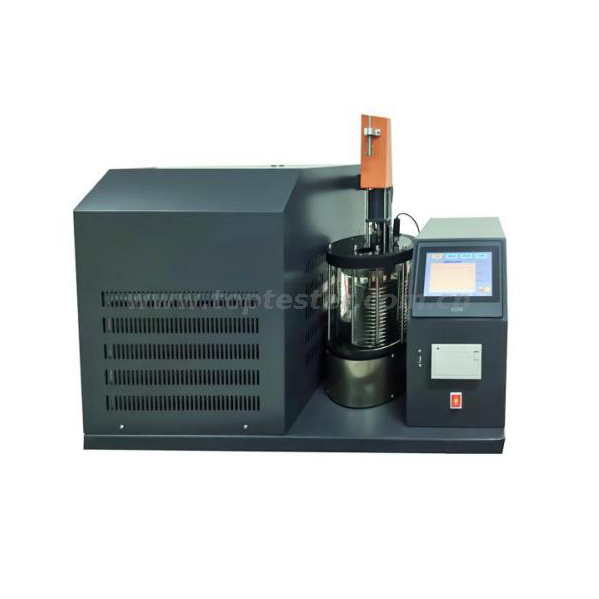

SH128 Automatic antifreeze freezing point tester is designed and manufactured according to the national petrochemical industry standard SH/T0090-91 "Engine Coolant Freezing Point Determination Method" and GB/T 2430 "Jet Fuel Ice Point Determination Method" and ASTM D2386, ASTM D1177. Suitable for measuring the freezing point of engine coolant and its concentrate.
Features:
It adopts embedded system design and imported PT100 temperature sensor, automatically detects the whole test process; color touch screen; can store test results; can view historical data; print results on instrument, mechanical automatic stirring, the experimental results can be exported through the U disk, be compared multiple times after being stored in the computer.
Technical parameter:
Power supply: | AC220V±10%；50Hz |
Working cold bath: | Double vacuum glass bath |
Cold bath temperature control: | +30°C~-70°C。(customized+20°C~-80°C) |
Temperature control accuracy: | ±0.5°C |
Bath mixing: | Automatic mixing by mixing motor,power :6W，1200r/min |
Refrigeration system: | Imported cascade refrigeration compressor |
Sample mixing: | Synchronous geared motor, 60 times/min |
Ambient temperature: | ≤30°C |
Relative humidity: | ≤85% |
Power consumption: | About 1500W |
Applicable standards: | SH/T0090-91、GB/T 2430、ASTM D2386、ASTM D1177 |
Size | 105.5*61.5*70CM |
Weight | 103.00KGS |
