Application:

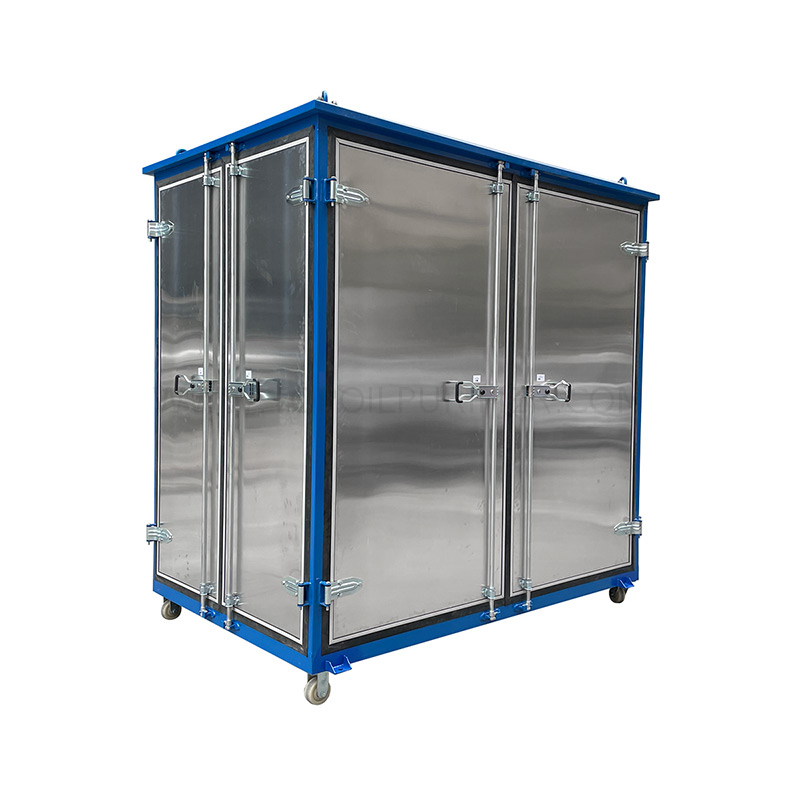

TY-W is fully enclosed type turbine oil purifier equipped with dust and water proof device. It applies to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity oil and coolant oil.
To meet customers’ special needs, we develops
TY Turbine Oil Purifier
TY-A Automatic Turbine Oil Purifier with PLC
TY-Ex Explosion-proof turbine oil purifier for different requirements and working conditions
TY-W Enclosed type turbine oil purifier which can prevent rain, sun, dust
TY-M Mobile outdoor type turbine oil purifier which can move and operate on-site
TY-C Turbine Oil Purifier with Coalescence Separation Filter
Features:
1. TY-W is equipped with device of dust and water proof.
2. it is strong ability of dehydration and breaking emulsion, that is easy to separate the great moisture and tiny moisture out of the used oil. Because of the special break emulsion device (water separator), the emulsified oil could be treat and become transparent.
3. It is strong ability of removing impurities, that is the big area and deep-seated accurate filtration material can eliminate the tiny particles from used oil that could replace oil system clean device, make great polluted oil system recovered and meet “the operating turbine oil pollution control standard”
4. It is strong ability of automatic, safe and reliable operation. This model is used float ball level automatic control device that realizes auto working completely without manual labour, leads to a simple and stable operation.
5. Thus, TY series is specially fit for applying to filter turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.
6. Advanced infrared oil level control system and pressure protection device make operation simple and safe.
7. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.
8. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.
9. Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
10. High quality and low noise oil pump
11. Hi-automatization operation, convenience, reliable, and safety
Optional Features:
1. Fully Automatic Operation Controlled by Siemens Brand P.L.C (Programmable Logic Controller)
2. Flow Meter
3. Continuous Online Moisture in Oil Meter Model PTT-001)
4. Continuous Online Moisture and Particles in Oil Monitor(Model PTT-M)
5. Single/Double-axles Road worthy Trailer for Outdoor Use
Technical Parameter:
Item | Unit | TY-W -10 | TY-W -20 | TY-W -30 | TY-W -50 | TY-W -100 | TY-W -150 | TY-W -200 | TY-W -250 | TY-W -300 |
Flow rate | L/min | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Working vacuum | Mpa | -0.06 ~- 0.098 |
Working pressure | Mpa | ≤0.3 |
Temperature Range | ℃ | 0~100 |
Working Oil Temperature | ℃ | 45~65 |
Power supply |
| 380V/50HZ/3Ph 5 wire(as customer’s requirement) |
Continuous working time | H | ≥150 |
|
|
Working noise | dB(A) | ≤65 | ≤68 | ≤68 | ≤70 | ≤70 | ≤75 | ≤75 | ≤78 | ≤80 |
Electric heating power | kW | 15 | 18 | 24 | 36 | 60 | 72 | 120 | 150 | 180 |
Total electric power | kW | 17 | 20 | 26 | 39 | 65 | 79 | 128 | 180 | 192 |
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф45 | Ф50 | Ф60 | Ф63 |
Weight | kg | 350 | 400 | 450 | 500 | 900 | 1300 | 1500 | 1800 | 2000 |
Size | L | mm | 1350 | 1400 | 1450 | 1500 | 1700 | 1800 | 2000 | 2100 | 2400 |
W | mm | 950 | 1000 | 1050 | 1100 | 1150 | 1250 | 1400 | 1450 | 1550 |
H | mm | 1650 | 1700 | 1750 | 1800 | 1800 | 2000 | 2200 | 2300 | 2400 |
Index after filtering | Moisture content | PPM | ≤50 |
Gas content | % | 0.1 |
Impurity size | μm | ≤1(Customerizable) |
