Application

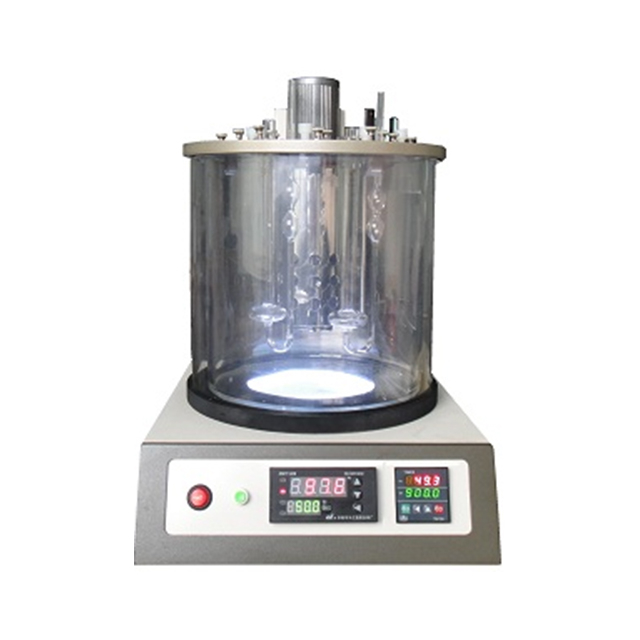

TPV-8 kinematic viscosity tester, applicable to GB265-88, GB1814, ASTM D445, IP71 and other determining methods, adopts precise digital temperature controller to control temperature, with advantage of digital display, high accuracy of temperature control, time-reckoning via digital stopwatch and uniform temperature of homoeothermic waterbath. It not only can be installed with four viscometers for testing simultaneously, but also can be a high-viscosity homoeothermic waterbath for other testing.
Main features
1. Adopts imported precise digital temperature controller to control temperature of bathtub and highlighted digital stopwatch for timing, easy to operate.
2. Equipped with ten-liter homoeothermic bathtub with advantages of uniform temperature and effective temperature control.
3. Equipped with stainless steel heater and components, anti-corrosion and durable; and employed with annular typed daylight lamp for lighting, easy to observe.
4. TPV-8, with four viscometer installing holes, can test four types of oil for testing simultaneously.
5. Capillarimeter clutch is three-point vertical type, with advantage of flexible and convenient operation and reliable grasp.
Technical parameters
Performance Standards | GB265-88 ,GB1814,ASTM D445,IP71, etc. |
Capillary Viscometer | Conform to SH/T0173-92 Technical Conditions of Glass Capillary Viscometer Conform to JJG155 Verification Regulation of Routine Capillary Viscometer |
Method of Display | Precise digital temperature controller Highlighted digital stopwatch calculagraph |
Temperature Control Range | Arbitrary setting between room temperature and 150℃ |
Testing Range | Kinematic viscosity：0.5～20000mm2/ Kinetic viscosity：0.3～40000mPa.s |
Temperature Control Accuracy | ±0.1℃ |
Timing Accuracy | ±0.1S |
Timing Range | 0.1S-999.9S |
Homoeothermic Bathtub | 300300mm double layer |
Temperature Testing Components | Precise imported platinum electric resistance |
Stirring Speed | 1520Rounds/Min |
Highest Power | 1800W |
Sample Installing Quantities | 4 pieces |
Working Environment | Ambient temperature: 15--35℃ Ambient Humidity: ＜85% |
Power Supply | 220V AC±10%; 50Hz±1Hz |
Dimension(largest) | 220*190*500（L*W*H） |
Weight | 12Kg |
