Application

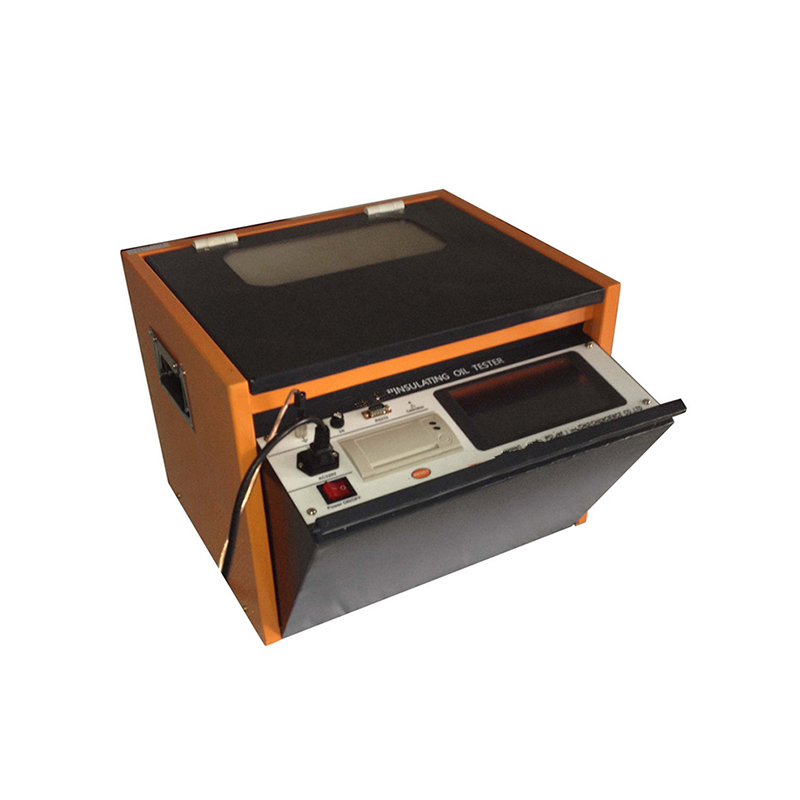

DYT-2 Insulating oil tester is improved on basis of DYT. It increases temperature measurement. All the selection can be done by touch pad with color LCD.
Functions
1. Breakdown test of user-defined
2. Proof test
3. IEC156/IS6792/BS5874/
4. ASTM D1816 standard test
5. ASTM D877 standard test
6. 5 minutes standard test
7. Manual test
8. Temperature measurement
9. Calibration interface for customers
10. Unloading data to PC and making word report automatically.
11. Result printing
Technique Parameters
Power supply: AC220V input
Output voltage: AC 0V~100KV
Rate of voltage rise: 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
Max test times: 9
Stir time: 0~999s
Wait time: 0~999s
Test error: 3% max in the range of 10kv~100kv
Accuracy of temperature measurement:1ºC
Weight 38kg
Size: 550 mm*500mm*580mm
