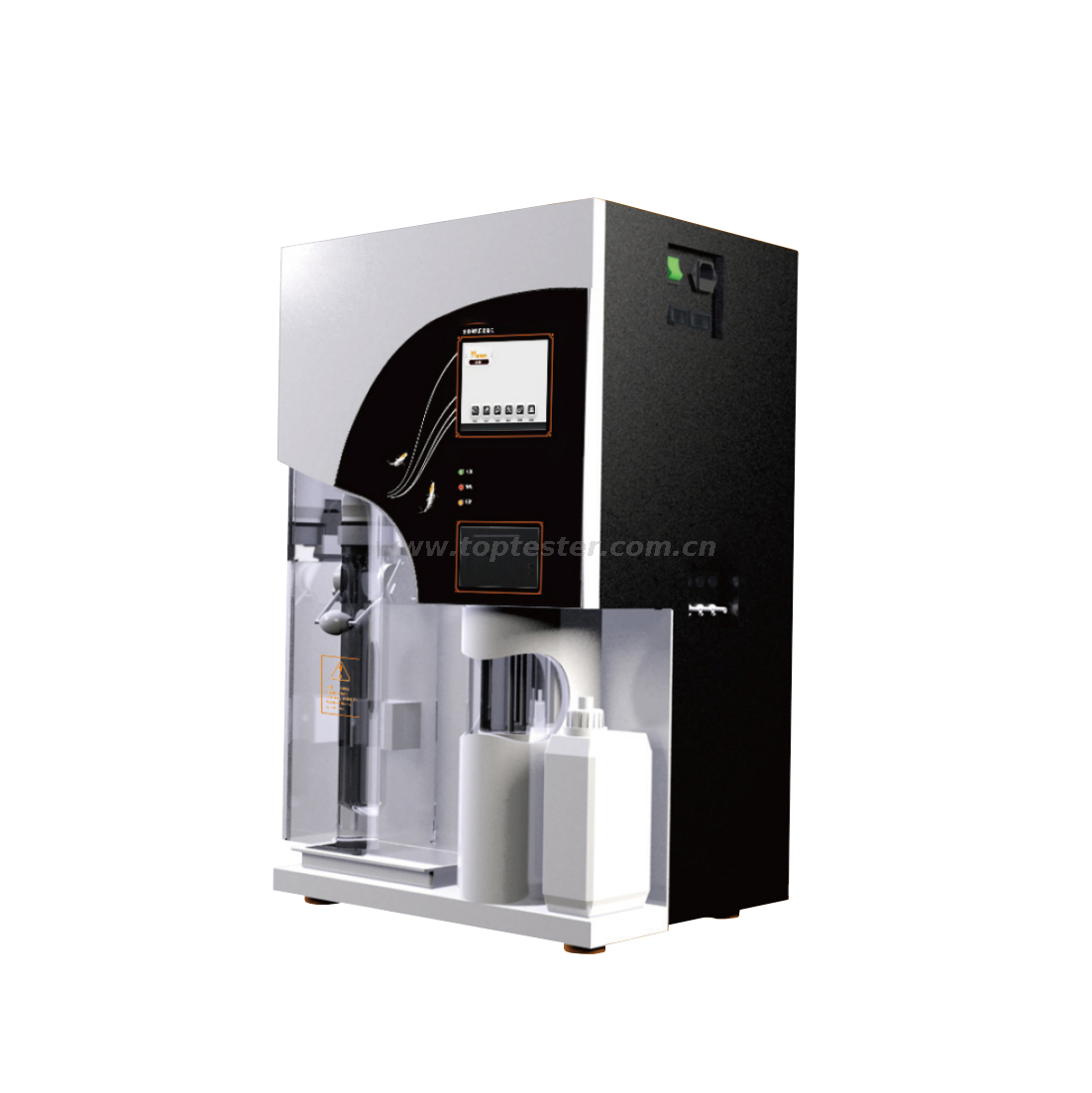

TP9880 Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. If s equipped with the latest core control system, powerful automatic degree and highquality components, can easily achieve automatic cleaning of digestion tubes and titration cups, control steam supply and have realtime detection of condensation temperature. Highaccuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.
Characteristics
• Automatic cleaning ensure operator safety and save time.
• External titration cup design gives operator realtime control of the whole test process.
• Highprecision charging pump and titration ensure test results accuracy.
• The temperature of distilled liquid is detected real time. If the tem perature of distilled liquid is abnormal, to ensure the accuracy of experiment's result, instrument will stop working.
Features
・ High accuracy dozing and working: adopt 4 KNF pumps work for dozing, mea surement liquid volume.
・ Easy Maintenance: Preinstall functions of cleaning, include receiving cup cleaning, alkali pipeline cleaning, boric acid pipeline cleaning, acid washing, steam bottle evacuation, support customer make the routine maintenance easily.
・ High titration accuracy, up to 2.0uL/step.
・ Integrated printer on the instruments
Technical data
Measuring range | 0.1mg 〜240mg N |
Analysis time | 5 ~ 10min/sample |
Reproducibility | Average value relative error <±0.5% |
Recovery | ≥99.5% |
Burette volume | 2.0uL/step |
Sample capacity | Solid ≤ 5g/sample, liquid ≤ 20mL/sample |
Water consumption in the distillation process | 1.5L/min |
Data storage capacity | 1000 groups |
Power supply | 220VAC±10%, 50Hz |
Power | 2Kw |
Net weight | 38 Kg |
Dimensions | 455mmx391mmx730mm |
